Home / Products / NdFeB Magnet / Round and cylindrical sintered NdFeB magnet

Round and cylindrical sintered NdFeB magnet Suppliers

Our products are central parts of household, industrial vacuum cleaners,
spray guns, hair dryers, garden tools.

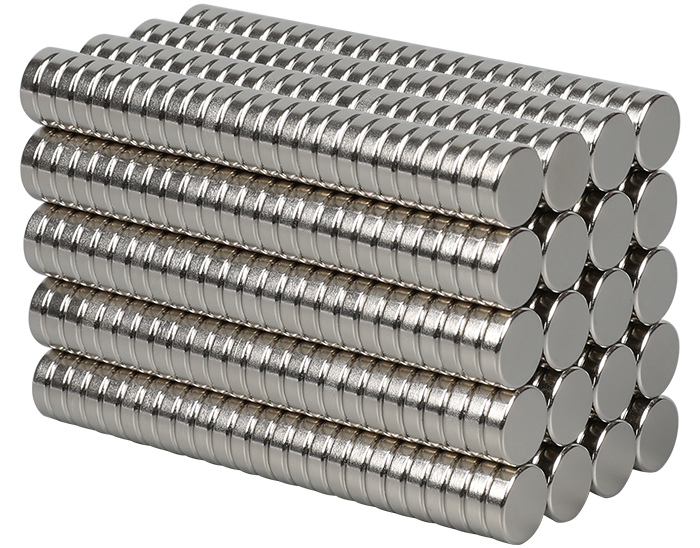

Round and cylindrical sintered NdFeB magnet

●Circular and cylindrical NdFeB magnets are produced in the form of discs and cylinders. Circular cylindrical NdFeB magnets are widely used in new energy vehicles, radar technology, electronic steering systems, satellite communications, remote control and telemetry technology, electronic tracking and electronic countermeasures technology.
●The Sintered NdFeB Magnet is powerful permanent magnet in modem times. It is not only has excellent properties such as high remanence, high coerce, high magnetic energy product .high performance price ratio and so on,but also is development of high-performance,miniaturized and lightweight replacement products.
●The consistency and stability of products between each orders, provides safeguard to our customers. For example, the consistency of (BH)max reaches 6o (Cpk1.67 or above).
●In order to raise working temperature of our products, Dingfeng Magnetics works hard to realize better high thermal stability and low thermal demagnetization, developed the series VH series products which can work at temperature higher than220℃.

Inquiry Us

PREV：No Previous Article
NEXT：Special shaped sintered NdFeB magnet

Description
Performance Parameter

Dimensional Range	Dimensional Tolerance	Parallelism	Planeness
D≤10	±0.03	0.03	0.03
10<D≤25	±0.03	0.03	0.04
25<D≤60	±0.04	±0.04	0.1
D>60	±0.05	0.05	0.1

Product description:

country of origin	Zhejiang Jinhua
Brand name	Dingfeng
compound material	NdFeB magnet
shape	Ring/tile/round column/square/other
purpose	Industrial magnet
Tolerance	±0.1%
Processing services	bending/decoying/cutting/punching/moulding
level	NdFeB magnet material No. (N/M/H/SH/UH/EH material)
grade BH	N28/N30/N35/N42/N48/N50
coating）	nickel/zinc/gold/silver/epoxy/passivated
Maximum operating temperature	200℃
quality system	ISO9001、IATF16949
certifications of magnet/environment）	ROHS/REACH
Delivery date	8-15 days (please consult the specific delivery time)
MOQ	2000PCS/PKG
throughput	100k PCS per DAY

Surface Treatment

Based on the production of high property magnetic material, Dingfeng actively researches and upgrades the techniques of superficial protection. We provide our customer high qualified Zink

coating. Tin coating, Nickel coating, electrophoresis, etc. They have excellent performance in the SST test to against humidity and temperature, which guarantee its application in harsh environment. During the production process, environmental protection is highlighted, and all the coating and platingconfirm to ROHS standard.

Serial Number	Type of Coating		Coating Thickness	Coating Color	PCT (Hour)	SST(Hour)
1	Zink	Zn.L	4-15μm	Blue & White	/	24
1	Zink	Zn.C	4-15μm	Multi-Colored	/	48
2	Nickel	NiCuNI	5-20μm	Bright Silver	48	48
2	Nickel	Ni+AP.Ni	3~20μm	Dark Silver	48	72
3		NiSn	5~20μm	Silver	96	72
4		NiAg	5~20μm	Silver	96	72
5		NiAu	5-20μm	Golden	96	72

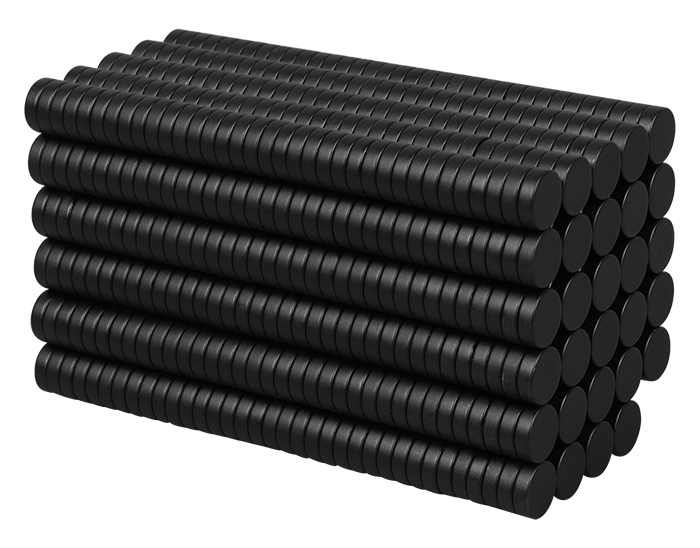

6		Electrophoresis	20-30μm	Black, gray	/	>240

Sintered NdFeB Magnets

The Sintered NdFeB Magnet is powerful permanent magnet in modern times. It is not only has excellent properties such as high remanence, high coerce, high magnetic energy product, high performance price ratio and so on, but also is development of high-performance, miniaturized and lightweight replacement products.

High consistency

The consistency and stability of products between each orders, provides safeguard to our customers. For example, the consistency of (BH)max reaches 6σ (Cpk1.67 or above).

High Working Temperature

In order to raise working temperature of our products, Dingfeng Magnetics works hard to realize better high thermal stability and low thermal demagnetization, developed the series VH series products which can work at temperature higher than220C.

Performance Parameter

Grade	Remanence (Min)		Magnetic Induction Coercivity (Min)		Intrinsic Coercivity (Min)		Max Magnetic energy Product (Range)		Maximum Working Temperature
	BR		Hcb		Hcj		(BH)max		Maximum Working Temperature
	KGs	T	KGe	KA/m	KOe	KA/m	MGOe	KJ/m³	C°
N54	14.5	1.45	10.5	836	11	875	51-55	406-438	80
N52	14.2	1.42	10.5	836	12	960	49-53	390-422	80
N50	13.9	1.39	10.5	836	12	960	47-51	374-406	80
N48	13.7	1.37	10.5	836	12	960	45-A9	358-390	80
N45	13.3	1.33	10.8	860	12	960	43-46	342-366	80
N42	12.9	1.29	10.8	860	12	960	40-43	318-342	80
N40	12.6	1.26	10.8	860	12	960	38-41	302-326	80
N38	12.3	1.23	10.8	860	12	960	36-39	287-310	80
N35	11.8	1.18	10.8	860	12	960	33-36	263-287	80
N52M	14.2	1.42	12.5	995	13	1035	49-53	390-422	100
N50M	13.9	1.39	13.0	1035	14	1114	47-51	374-406	100
N48M	13.7	1.37	12.7	1012	14	1114	45-49	358-390	100
NA5M	13.3	1.33	12.2	971	14	1114	43-46	3A2-366	100
N42M	12.9	1.29	11.8	938	14	1114	40-43	318-342	100
N40M	12.6	1.26	11.4	910	14	1114	38-41	302-326	100
N38M	12.3	1.23	11.0	876	14	1114	36-39	287-310	100
N35M	11.8	1.18	10.8	860	14	1114	33-36	263-287	100
N50H	13.9	1.39	13.0	1035	16	1274	47-51	374-406	120
N48H	13.7	1.37	12.8	1000	16	1274	45-49	358-390	120
N45H	13.3	1.33	12.5	995	17	1353	43-46	342-366	120
N42H	12.9	1.29	12.0	957	17	1353	40-43	318-342	120
N40H	12.6	1.26	11.7	930	17	1353	38-41	302-326	120
N38H	12.3	1.23	11.4	910	17	1353	36-39	287-310	120
N35H	11.8	1.18	11.0	876	17	1353	33-36	263-287	120
N33H	11.4	1.14	10.6	844	17	1353	31-34	247-271	120
N48SH	13.7	1.37	12.8	1035	19	1512	45-49	358-390	150
N45SH	13.3	1.33	11.8	938	20	1592	43-46	342-366	150
N42SH	12.9	1.29	11.8	938	20	1592	40-43	318-342	150
N40SH	12.6	1.26	11.5	912	20	1592	38-41	302-326	150
N38SH	12.3	1.23	11.1	886	20	1592	36-39	287-310	150
N35SH	11.8	1.18	11.0	876	20	1592	33-36	263-287	150
N33SH	11.4	1.14	10.5	836	20	1592	31-34	247-271	150
N45UH	13.3	1.33	12.2	976	24	1911	43-46	342-366	180
N42UH	12.9	1.29	11.8	938	25	1990	40-43	318-342	180
N40UH	12.6	1.26	11.5	912	25	1990	38-41	302-326	180
N38UH	12.3	1.23	11.1	886	25	1990	36-39	287-310	180
N35UH	11.8	1.18	10.6	845	25	1990	33-36	263-287	180
N33UH	11.4	1.14	10.3	816	25	1990	31-34	247-271	180
N30UH	10.8	1.08	9.5	756	25	1990	28-31	223-247	180
N42EH	12.8	1.28	12.2	971	29	2308	39-43	310-342	200
N40EH	12.5	1.25	11.9	947	30	2388	37-41	295-326	200
N38EH	12.2	1.22	11.6	923	30	2388	35-39	279-310	200
N35EH	11.8	1.18	11.1	883	30	2388	33-36	263-287	200
N33EH	11.4	1.14	10.3	816	30	2388	31-34	247-271	200
N30EH	10.8	1.08	9.5	756	30	2388	28-31	223-247	200
N28EH	10.5	1.05	9.5	756	30	2388	26-29	207-231	200
N38TH	12.2	1.22	11.6	923	33	2627	35-39	279-310	230
N35TH	11.8	1.18	10.6	845	35	2786	33-36	263-287	230
N33TH	11.4	1.14	10.2	816	35	2786	31-34	247-271	230
N30TH	10.8	1.08	10.1	804	35	2786	28-31	223-247	230
N28TH	10.5	1.05	9.5	756	35	2786	26-29	207-231	230

Note :

1.The above-mentioned data of magnetic parameters and physical properties are given at room temperature.

2.The maximum service temperature of magnet is changeable due to the ratio of length and diameter, coating and environmental factors.

3.Density: 7.4-7.65g/cm3, Reversible Temperature Coefficient: ot-0.13--0.09%/"C; 0 -0.80--0.50%/°C ; Hardness: Hv600.

Technical Support

Dingfeng Magnet always adheres to the working style of "professional, responsible, efficient and innovative" and the business philosophy of "integrity and win-win".
Quality Guarantee

DingFeng after more than 20 years of technology accumulation and precipita-tion for the industry to improve performance cost reduction contributed to the strength of many years market.
Online Service

Experienced employees & experts are always at your service to provide you with satisfactory products & professional instruction on technical problem solutions.

ABOUT DINGFENG MAGNETS

Since in 2000, Dongyang Dingfeng Magnetic Materials Co., Ltd. was established in March 2000 and is located in Hengdian Town, which is known as “China Magnetic Capital” and “Oriental Hollywood”. It is famous China Round and cylindrical sintered NdFeB magnet manufacturers and Round and cylindrical sintered NdFeB magnet factory specializing in the research, development, production and operation of permanent magnet materials. high-tech enterprises. Now the main production and sales products are sintered NdFeB and permanent magnet ferrite and other materials.

Our wholesale Round and cylindrical sintered NdFeB magnet are exported to the United States, Southeast Asia, Europe and other countries and regions. We are one of the professional suppliers of electroacoustic magnets in the world. Our products are also widely used in communication, permanent magnet motor, automobile and other fields, with a broad market and potential development prospects.

bt_bb_section_bottom_section_coverage_image

ISO 45001
ISO 14001
ISO 9001
IATF16949
Patent Certificate
Patent Certificate
Patent Certificate
Patent Certificate
Patent Certificate
Patent Certificate
Patent Certificate
Patent Certificate

Do You Have Any Question?

Do You Have Any Question? Do You Have Any Question?

Nov 15 2024
Key Roles of Magnetic Materials In Modern Industry

Cheap Custom neodymium iron boron Wholesaler Factory With the increasing global focus on energy efficiency and sustainability, magnetic materials are ...
Read More+
Nov 08 2024
Exploring the Magic and Creativity of Ring Neodymium Magnets

Design ring neodymium magnets Supplier In this world where magnetism is ubiquitous, ring neodymium magnets have become indispensable little giants in ...
Read More+
Nov 01 2024
Magnetic Performance of NdFeB Ring Magnets

Custom ndfeb ring magnet manufacturing factory NdFeB ring magnets, composed of neodymium, iron, and boron, are known for their exceptional magnetic pe...
Read More+
Oct 25 2024
The Physical Properties of Ferrite Materials

ferrite material manufacturer and supplier in China Ferrite materials, known for their unique magnetic and electrical properties, play a crucial role ...
Read More+
Oct 18 2024
Manufacturing Processes of Ceramic Ferrites

Wholesale ceramic ferrite factory in China Ceramic ferrites, a class of materials with unique magnetic properties, have found extensive applications i...
Read More+
Oct 11 2024
Design, Manufacturing, and Applications of Ferrite Ring Magnets

ODM ferrite ring magnets manufacturer and exporter Ferrite ring magnets are widely used permanent magnetic materials known for their stable magnetic p...
Read More+
Oct 04 2024
The Vital Role of Ferrite Rings in Electromagnetic Compatibility (EMC) Design of Electronic Devices

ODM ferrite ring manufacturer and exporter In the ever-evolving landscape of electronic device design, ensuring Electromagnetic Compatibility (EMC) is...
Read More+

What is Round and cylindrical sintered NdFeB magnet

Round and cylindrical sintered NdFeB magnets are types of permanent magnets made from a combination of neodymium, iron, and boron. They are produced using a powder metallurgy process where the raw materials are melted, cast into a mold, crushed into small particles, and then pressed into the desired shape using a magnetic field. The resulting magnet is then sintered or heated to fuse the particles together into a solid piece.

Round sintered NdFeB magnets have a circular shape, while cylindrical sintered NdFeB magnets have a cylindrical shape. Both types of magnets have high magnetic strength and are commonly used in a variety of applications, such as in motors, generators, sensors, and speakers. They are also used in medical equipment, aerospace, and defense industries, as well as in consumer electronics, such as headphones and hard disk drives.

The main purpose of Round and cylindrical sintered NdFeB magnet

The main purpose of round and cylindrical sintered NdFeB magnets is to provide a strong and permanent magnetic field. These magnets have high magnetic strength and can generate a strong magnetic field that can be used in a wide range of applications, such as:

1. Motors and generators: NdFeB magnets are commonly used in electric motors and generators due to their high magnetic strength and excellent magnetic properties. They are used to create the magnetic field that generates the rotational force required for these devices to function.

2. Sensors and actuators: NdFeB magnets are used in sensors and actuators to detect and control movement or position. They are used in a wide range of applications, such as automotive sensors, magnetic locks, and robotics.

3. Medical equipment: NdFeB magnets are used in medical equipment, such as MRI machines and diagnostic devices. They are used to create a magnetic field that allows for non-invasive imaging of the body's internal structures.

4. Consumer electronics: NdFeB magnets are used in a variety of consumer electronics, such as headphones, speakers, and hard disk drives. They are used to create the magnetic field that produces sound or stores data.

Overall, the main purpose of round and cylindrical sintered NdFeB magnets is to provide a powerful and reliable source of magnetic field for various industrial and technological applications.
