Home / Products / NdFeB Magnet / Segment shaped intered NdFeB Magnets

Segment shaped intered NdFeB Magnets Suppliers

Our products are central parts of household, industrial vacuum cleaners,
spray guns, hair dryers, garden tools.

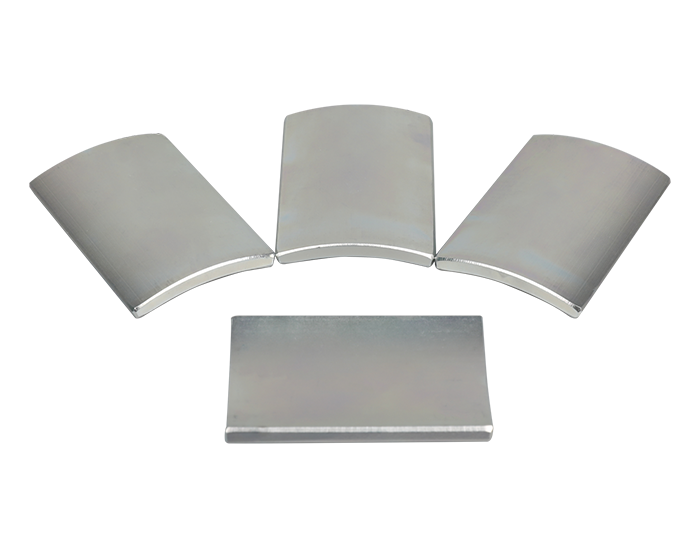

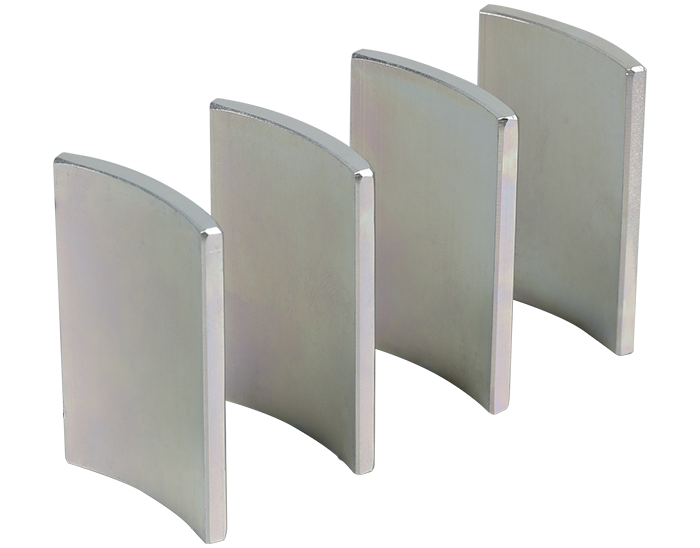

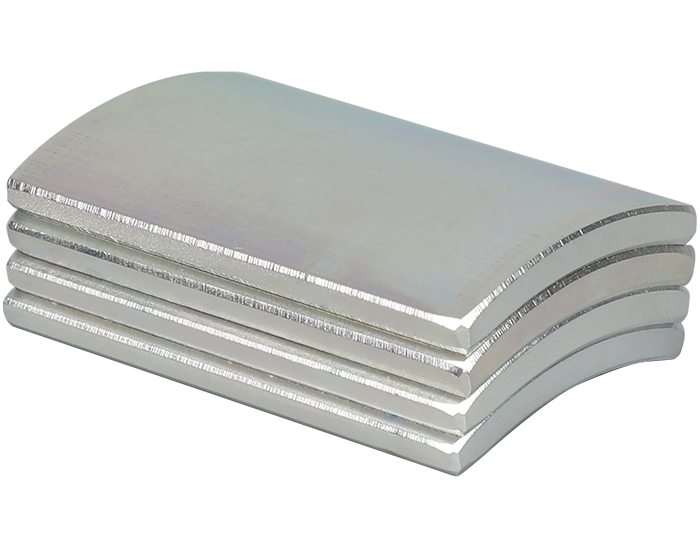

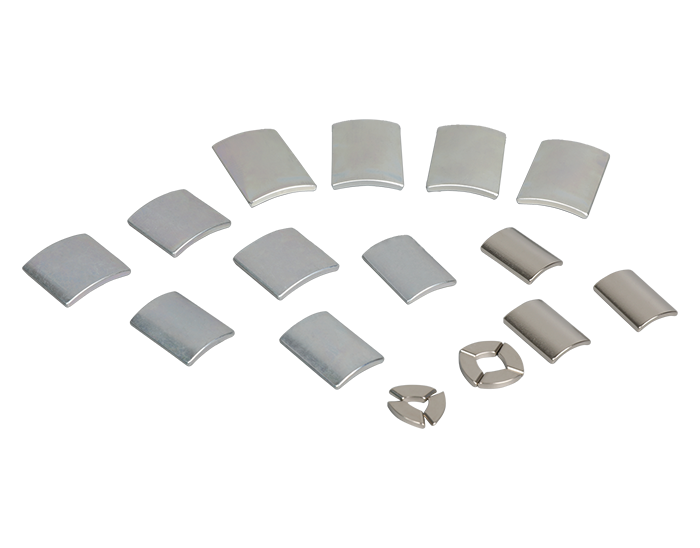

Segment shaped intered NdFeB Magnets
  • Segment shaped intered NdFeB Magnets
  • Segment shaped intered NdFeB Magnets
  • Segment shaped intered NdFeB Magnets
  • Segment shaped intered NdFeB Magnets
  • Segment shaped intered NdFeB Magnets

Segment shaped intered NdFeB Magnets

●The tile neodymium iron boron magnet is named after its extremely similar shape to the tile, and more than one-third of its output is used to manufacture various permanent magnet motors. Permanent magnet motor has the advantages of electricity saving, electricity saving, light weight, small size, high specific power. Electric bicycle motors, computer driven motors, lathes, etc. are used to measure the speed and rotation speed of motors, elevator traction motors, refrigerator air conditioning motors, wind turbines, automobile motors, etc., which are widely used.
●The Sintered NdFeB Magnet is powerful permanent magnet in modem times. It is not only has excellent properties such as high remanence, high coerce, high magnetic energy product .high performance price ratio and so on,but also is development of high-performance,miniaturized and lightweight replacement products.
●The consistency and stability of products between each orders, provides safeguard to our customers. For example, the consistency of (BH)max reaches 6o (Cpk1.67 or above).
●In order to raise working temperature of our products, Dingfeng Magnetics works hard to realize better high thermal stability and low thermal demagnetization, developed the series VH series products which can work at temperature higher than220℃.
Inquiry Us
PREV：Special shaped sintered NdFeB magnet
NEXT：Ring sintered NdFeB magnet
  • Description
  • Performance Parameter

  • Company: mm

    Geometric Tolerance

    Dimensional Range

    Dimensional Tolerance

    Wall thickness

    T≤10

    ±0.04

    10<T≤25

    ±0.04

    Length

    L≤10

    ±0.04

    10<L≤25

    ±0.04

    25<L≤60

    ±0.04

    L>60

    ±0.06

    Chord length

    W≤10

    ±0.05

    W>60

    ±0.05
    Product description:

    country of origin

    Zhejiang Jinhua

    Brand name

    Dingfeng

    compound material

    NdFeB magnet

    shape

    Ring/tile/round column/square/other

    purpose

    Industrial magnet

    Tolerance

    ±0.1%

    Processing services

    bending/decoiling/cutting/punching/moulding

    level

    NdFeB magnet material No. (N/M/H/SH/UH/EH material)

    grade BH

    N28/N30/N35/N42/N48/N50

    coating）

    nickel/zinc/gold/silver/epoxy/passivated

     Maximum operating temperature

    200℃

    quality system

    ISO9001、IATF16949

    certifications of magnet/environment）

    ROHS/REACH

    Delivery date

     8-15 days (please consult the specific delivery time)

    MOQ

    2000PCS/PKG

    throughput

    100k PCS per DAY
  • Technical Support
    Technical Support

    Dingfeng Magnet always adheres to the working style of "professional, responsible, efficient and innovative" and the business philosophy of "integrity and win-win".

  • Quality Guarantee
    Quality Guarantee

    DingFeng after more than 20 years of technology accumulation and precipita-tion for the industry to improve performance cost reduction contributed to the strength of many years market.

  • Online Service
    Online Service

    Experienced employees & experts are always at your service to provide you with satisfactory products & professional instruction on technical problem solutions.

ABOUT DINGFENG MAGNETS

Since in 2000, Dongyang Dingfeng Magnetic Materials Co., Ltd. was established in March 2000 and is located in Hengdian Town, which is known as “China Magnetic Capital” and “Oriental Hollywood”. It is famous China Segment shaped intered NdFeB Magnets manufacturers and Segment shaped intered NdFeB Magnets factory specializing in the research, development, production and operation of permanent magnet materials. high-tech enterprises. Now the main production and sales products are sintered NdFeB and permanent magnet ferrite and other materials.

Our wholesale Segment shaped intered NdFeB Magnets are exported to the United States, Southeast Asia, Europe and other countries and regions. We are one of the professional suppliers of electroacoustic magnets in the world. Our products are also widely used in communication, permanent magnet motor, automobile and other fields, with a broad market and potential development prospects.

Our Honor & Quality We Promise Quality

A Mature Factory You Can Count On.
bt_bb_section_bottom_section_coverage_image
  • ISO 45001

    ISO 45001

  • ISO 14001

    ISO 14001

  • ISO 9001

    ISO 9001

  • IATF16949

    IATF16949

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

  • Patent Certificate

    Patent Certificate

Related Products

Do You Have Any Question?

Do You Have Any Question? Do You Have Any Question?

RECENT TRENDS

The News & Blog From Us

RECENT TRENDS

Industry Knowledge Extension

What is Segment shaped intered NdFeB Magnet

Segment shaped intered NdFeB magnets are permanent magnets made from a type of rare earth metal alloy that contains neodymium, iron, and boron. These magnets are shaped like a segment or a slice of a cylinder, and are commonly used in a wide variety of applications, such as electric motors, generators, magnetic separators, and magnetic resonance imaging (MRI) machines.
NdFeB magnets are known for their strong magnetic field, high coercivity, and high energy density, making them some powerful magnets available today. They are manufactured using a process called sintering, where the raw materials are heated and pressed into shape under high pressure. The resulting magnets are extremely hard and brittle, and must be handled with care to avoid cracking or chipping.
Segment shaped NdFeB magnets are often used in applications where a strong, focused magnetic field is required, such as in motors and generators where they provide high torque and efficiency. They are also used in MRI machines to produce a strong and uniform magnetic field for medical imaging purposes. Overall, NdFeB magnets are versatile and reliable, making them a popular choice for many industrial and scientific applications.

Advantages of Segment shaped intered NdFeB Magnets

Segment shaped intered NdFeB magnets offer several advantages over other types of magnets:
1. High magnetic strength: NdFeB magnets are the strongest type of permanent magnets available, with a high magnetic field strength that allows them to be used in applications where a strong magnetic field is required.
2. High energy density: NdFeB magnets have a high energy density, meaning they can store a large amount of magnetic energy in a small space, making them ideal for applications where space is limited.
3.  Versatile: NdFeB magnets can be shaped into a variety of sizes and shapes, making them suitable for a wide range of applications.
4. Temperature stability: NdFeB magnets have excellent temperature stability, meaning they can operate in a wide range of temperatures without losing their magnetic properties.
5. Corrosion resistance: NdFeB magnets are resistant to corrosion, making them suitable for use in harsh environments where other types of magnets may not be suitable.
6. Cost-effective: NdFeB magnets are relatively inexpensive to produce, making them a cost-effective choice for many industrial and scientific applications.
Overall, segment shaped intered NdFeB magnets offer a combination of high magnetic strength, energy density, versatility, temperature stability, corrosion resistance, and cost-effectiveness that makes them an ideal choice for a wide range of applications.
